Product Specification

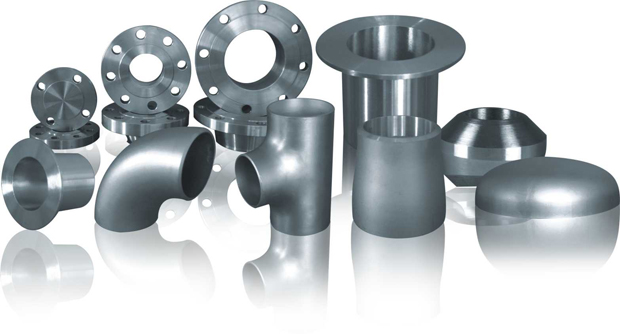

Stainless Steel Elbows and Returns

Nominal
Pipe
Size
(inches)

Outside
Diameter

90^o Elbows

45^o Elbows

180^o Returns

Long Radius

Short Radius

Long Radius

Long Radius

(mm)

(inches)

Center to Face
(inches)

Center to Face
(inches)

Center to Face
(inches)

Radius
(inches)

Center to Center
(inches)

Back to face
(inches)

1/2

21.3

0.840

1 1/2

-

5/8

2

1 7/8

3/4

26.7

1.050

1 1/8

-

7/16

2 1/4

1 11/16

1

33.4

1.315

1 1/2

1

7/8

3

2 3/16

1 1/4

42.2

1.660

1 7/8

1 1/4

1

3 3/4

2 3/4

1 1/2

48.3

1.900

2 1/4

1 1/2

1 1/8

3

4 1/2

3 1/4

2

60.3

2.375

3

2

1 3/8

4

6

4 3/16

2 1/2

73.0

2.875

3 3/4

2 1/2

1 3/4

5

7 1/2

5 3/16

3

88.9

3.500

4 1/2

3

2

6

9

6 1/4

3 1/2

101.6

4.000

5 1/4

3 1/2

2 1/4

7

10 1/2

7 1/4

4

114.3

4.500

6

4

2 1/2

8

12

8 1/4

5

141.3

5.563

7 1/2

5

3 1/8

10

15

10 5/16

6

168.3

6.625

9

6

3 3/4

12

18

12 5/16

8

219.1

8.625

12

8

5

12

24

16 5/16

Stainless Steel Reducers

Nominal
Pipe
Size

Outside
Diameter

Reducers

Reduced from
(inches)

(mm)

(inches)

Reduced to
(inches)

Concentric & Eccentric Length
(inches)

1/2

21.3

0.840

1/4

1 1/2

3/8

1 1/2

3/4

26.7

1.050

3/8

2

1/2

2

1

33.4

1.315

3/8

2

1/2

2

3/4

2

1 1/4

42.2

1.660

1/2

2

3/4

2

1

2

1 1/2

48.3

1.900

1/2

2 1/2

3/4

2 1/2

1

2 1/2

1 1/4

2 1/2

2

60.3

2.375

3/4

3

1

3

1 1/4

3

1 1/2

3

2 1/2

73.0

2.875

1

3 1/2

1 1/4

3 1/2

1 1/2

3 1/2

2

3 1/2

3

88.9

3.500

1

3 1/2

1 1/2

3 1/2

2

3 1/2

2 1/2

3 1/2

3 1/2

101.6

4.000

1 1/4

4

1 1/2

4

2

4

2 1/2

4

3

4

4

114.3

4.500

1 1/2

4

2

4

2 1/2

4

3

4

3 1/2

4

5

141.3

5.563

2

5

2 1/2

5

3

5

3 1/2

5

4

5

6

168.3

6.625

2 1/2

5 1/2

3

5 1/2

3 1/2

5 1/2

4

5 1/2

5

5 1/2

8

219.1

8.625

3

6

3 1/2

6

4

6

5

6

6

6

10

273.1

10.750

4

7

5

7

6

7

8

7

12

323.9

12.750

5

8

6

8

8

8

10

8

Stainless Steel Tees, Caps, Stub Ends and Straight Crosses

Nominal
Pipe
Size
(inches)

Outside
Diameter

Caps

Straight Tees

Straight Crosses

Stub Ends

(mm)

(inches)

Length
(inches)

Center to End
(inches)

Center to End
(inches)

Lap Diameter
(inches)

Long Length
(inches)

Short Length
(inches)

1/2

21.3

0.840

1

1

-

1 3/8

3

2

3/4

26.7

1.050

1

1 1/8

-

1 11/16

3

2

1

33.4

1.315

1 1/2

1 1/2

1 1/2

2

4

2

1 1/4

42.2

1.660

1 1/2

1 7/8

1 7/8

2 1/2

4

2

1 1/2

48.3

1.900

1 1/2

2 1/4

2 1/4

2 7/8

4

2

2

60.3

2.375

1 1/2

2 1/2

2 1/2

3 5/8

6

2 1/2

2 1/2

73.0

2.875

1 1/2

3

3

4 1/8

6

2 1/2

3

88.9

3.500

2

3 3/8

3 3/8

5

6

2 1/2

3 1/2

101.6

4.000

2 1/2

3 3/4

3 3/4

5 1/2

6

3

4

114.3

4.500

2 1/2

4 1/8

4 1/8

6 3/16

6

3

5

141.3

5.563

3

4 7/8

4 7/8

7 5/16

8

3

6

168.3

6.625

3 1/2

5 5/8

5 5/8

8 1/2

8

3 1/2

8

219.1

8.625

4

7

7

10 5/8

8

4

10

273.1

10.750

5

8 1/2

8 1/2

12 3/4

10

5

12

323.9

12.750

6

10

10

15

10

6
